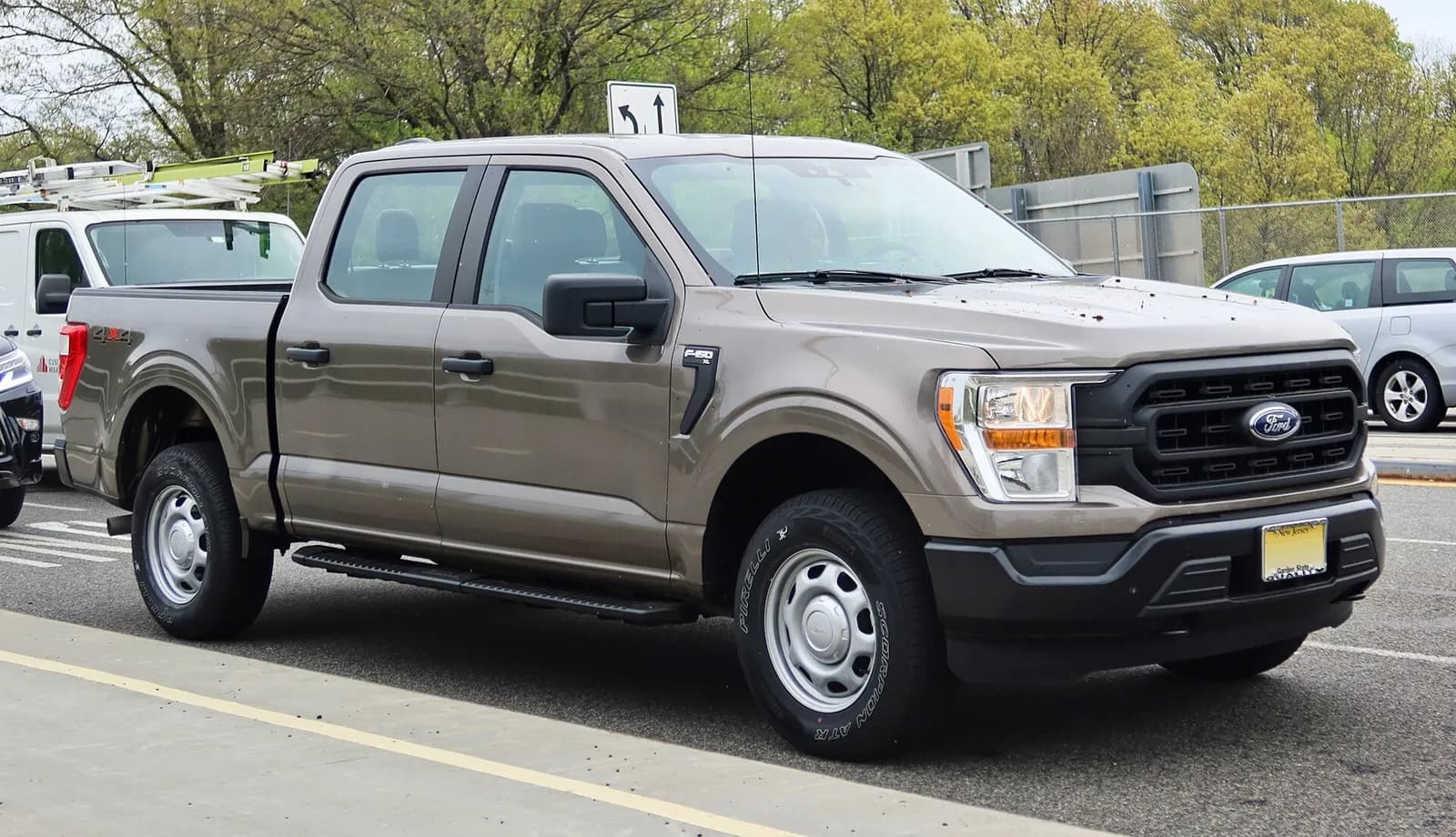

Fourteenth generation · 2021–present
Ford F-150
Every configuration's clearance, angles, weights and towing from Ford's own documents, then what a lift and bigger tyres do to them.
- Approach
- 20.7–33.1°
- Clearance
- 8.2–13.1 in
- Tows up to
- 11,100 lb
- Configurations, all years
- 74
Spec plate
2026 Ford F-150
One configuration per trim, named under each heading. Solid figures are the maker's; "door label" means the maker only prints it on each vehicle's certification label.
| XLXL Regular Cab 6.5-ft 4x2 5.0L V8 | STXSTX SuperCab 6.5-ft 4x2 2.7L EcoBoost V6 | XLTXLT SuperCab 6.5-ft 4x2 2.7L EcoBoost V6 | LariatLariat SuperCrew 5.5-ft 4x2 5.0L V8 | King RanchKing Ranch SuperCrew 5.5-ft 4x2 3.5L EcoBoost V6 | PlatinumPlatinum SuperCrew 5.5-ft 4x2 3.5L EcoBoost V6 | TremorTremor SuperCrew 5.5-ft 4x4 3.5L EcoBoost V6 | RaptorRaptor SuperCrew 5.5-ft 4x4 3.5L EcoBoost High Output V6 | Raptor RRaptor R SuperCrew 5.5-ft 4x4 5.2L Supercharged V8 | |
|---|---|---|---|---|---|---|---|---|---|
| Ground clearance | 8.3 in | 8.2 in | 8.2 in | 8.2 in | 8.2 in | 8.2 in | 10.7 in | 11.9 in | 13.1 in |
| Approach | 20.7° | 22.5° | 22.5° | 23.3° | 23.3° | 23.3° | 27.6° | 30.7° | 33.1° |
| Breakover | 20.1° | 17.3° | 17.3° | 17.1° | 17.1° | 17.1° | 21.1° | 22.3° | 24.4° |
| Departure | 23.9° | 24.4° | 24.4° | 24.3° | 24.3° | 24.3° | 24.1° | 23.5° | 24.9° |
| Wheelbase | 122.8 in | 145.4 in | 145.4 in | 145.4 in | 145.4 in | 145.4 in | 145.6 in | 145.4 in | 145.4 in |
| Curb weight | 4,410 lb | 4,641 lb | 4,641 lb | 4,809 lb | 4,884 lb | 4,884 lb | — | — | — |
| GVWR | 6,250 lb | 6,365 lb | 6,365 lb | 6,850 lb | 6,800 lb | 6,800 lb | — | — | — |
| Max payload | 1,790 lb | 1,670 lb | 1,670 lb | 1,985 lb | 1,860 lb | 1,860 lb | 2,175 lb | 1,405 lb | 1,410 lb |
| Max towing | 9,000 lb | 7,500 lb | 7,500 lb | 9,500 lb | 10,600 lb | 10,600 lb | 10,600 lb | 8,200 lb | 8,700 lb |
| Front axle rating | 3,000 lb | 3,300 lb | 3,300 lb | 3,450 lb | 3,450 lb | 3,450 lb | — | — | — |
| Stock tyres | 245/70R17 | 265/60R18 | 245/70R17 | 265/60R18 | 275/60R20 | 275/60R20 | 275/70R18 | LT315/70R17 | 37x12.5R17 |
| Low range | n/a | n/a | n/a | n/a | n/a | n/a | — | — | — |
Build it
What a lift and bigger tyres do to a F-150
Lift
Tyres
Load
Ground clearance
13.1 in—
Maker
Clearance, rear diff
No data yet
No data yet
Approach
33.1°—
Maker
Breakover
24.4°—
Maker
Departure
24.9°—
Maker
Tyre diameter
37.0 in—
Maker37x12.5R17
Speedometer
accurate—
Maker
Effective final drive
4.10:1—
Maker
Payload left
1,410 lb—
Maker
Front axle load
No data yet
No data yet
Rear axle load
No data yet
No data yet
Stock figures: 2026 Ford F-150 Pickup Technical Specifications (03/31/26 V1.1). Solid outline = from the maker; dashed = our estimate from geometry.
Part masses are typical, not yours. This is an estimate, not a weighbridge: weigh your rig.
