Sixth generation (U725) · 2021–present

Ford Bronco

Every configuration's clearance, angles, weights and towing from Ford's own documents, then what a lift and bigger tyres do to them.

Approach: 35.7–47.2°
Clearance: 8.3–13.1 in
Tows up to: 4,500 lb
Configurations, all years: 18

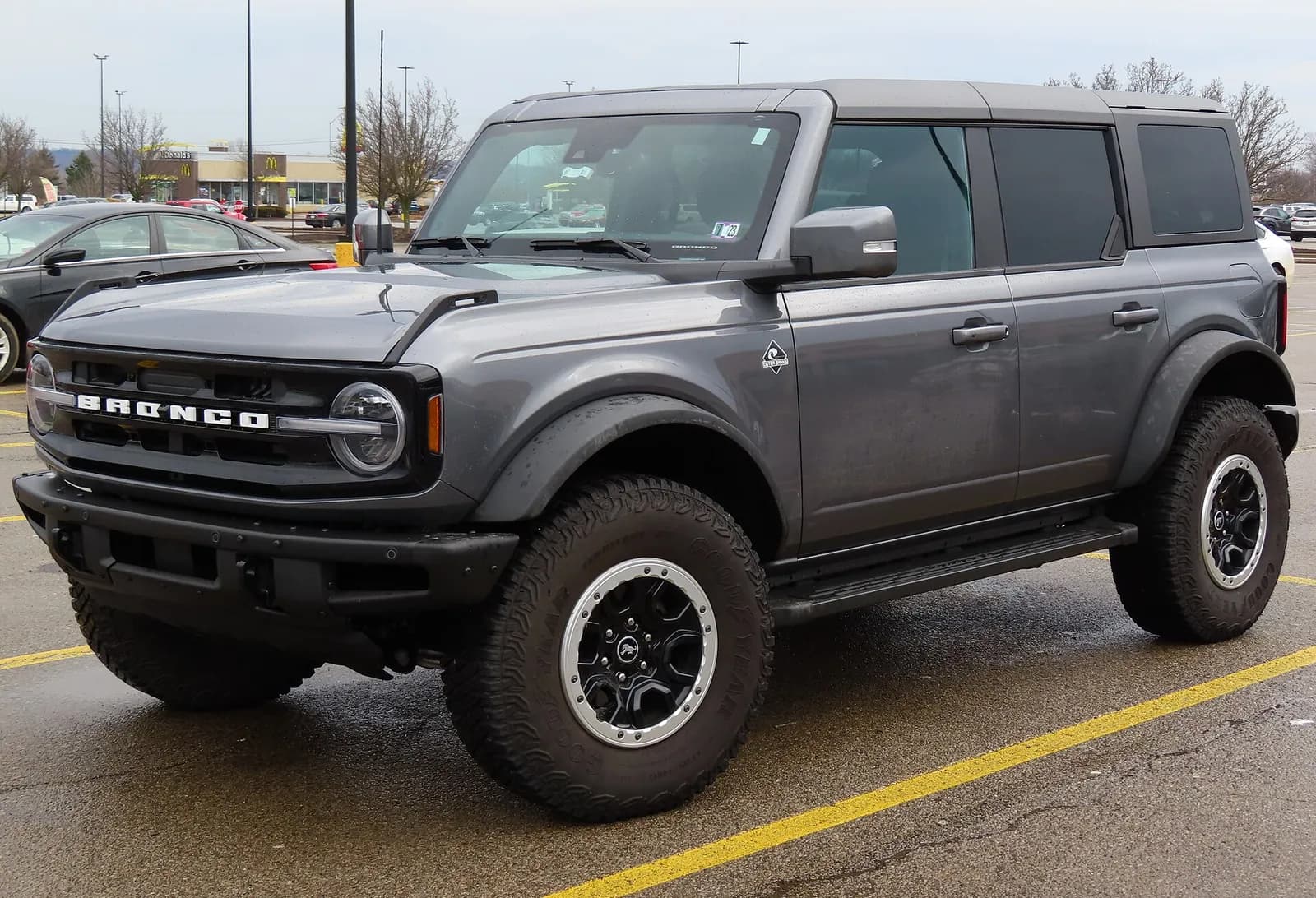

2022 Ford Bronco four-door Outer Banks with the Sasquatch package, front three-quarter view — Photo: MercurySable99, CC BY-SA 4.0, via Wikimedia Commons, resized.

Spec plate

2026 Ford Bronco

One configuration per trim, named under each heading. Solid figures are the maker's; "door label" means the maker only prints it on each vehicle's certification label.

	BaseBase 2-door 2.3L 7-speed manual	Big BendBig Bend 4-door 2.3L 7-speed manual	Outer BanksOuter Banks 4-door 2.3L 10-speed auto	BadlandsBadlands 4-door 2.3L 7-speed manual	Heritage EditionHeritage Edition 4-door 2.3L 7-speed manual	Stroppe EditionStroppe Edition 4-door 2.7L 10-speed auto	RaptorRaptor 4-door 3.0L 10-speed auto
Ground clearance	8.3 in	9.4 in	9.4 in	10.5 in	11.5 in	11.5 in	13.1 in
Approach	35.7°	38.3°	38.3°	41.3°	43.3°	43.3°	47.2°
Breakover	21.3°	22.1°	22.1°	24.1°	26.3°	26.3°	30.8°
Departure	29.9°	32.1°	32.1°	34.5°	36.9°	36.9°	40.5°
Wheelbase	100.4 in	116.1 in	116.1 in	116.1 in	116.1 in	116.1 in	116.1 in
Curb weight	4,336 lb	4,523 lb	4,637 lb	4,897 lb	4,871 lb	5,334 lb	5,814 lb
GVWR	5,540 lb	5,920 lb	5,920 lb	6,140 lb	5,980 lb	6,160 lb	6,850 lb
Max payload	1,147 lb	1,333 lb	1,283 lb	1,243 lb	1,109 lb	1,141 lb	1,155 lb
Max towing	3,500 lb	3,500 lb	3,500 lb	3,500 lb	3,500 lb	3,500 lb	4,500 lb
Front axle rating	2,900 lb	3,090 lb	3,090 lb	3,180 lb	3,180 lb	3,300 lb	3,600 lb
Stock tyres	255/70R16	P255/75R17	P255/70R18	LT285/70R17	LT315/70R17	LT315/70R17	37x12.5R17
Low range	2.72:1	2.72:1	2.72:1	3.06:1	3.06:1	3.06:1	3.06:1

Sources: 2026 Ford Bronco SUV Technical Specifications (2/18/26 V1.0) · 2026 Ford Bronco Towing Guide · 2026 Bronco Equipment Installation Guide (body builders layout book) · 2026 Bronco Order Guide (04/01/26) · 2026 Bronco (TG1) Owner's Manual, edition date 202512

Build it

What a lift and bigger tyres do to a Bronco

VehicleYearConfiguration

Liftfront only (leveling)

Tyres

Load

Ground clearance

13.1 in—

Maker

Clearance, rear diff

No data yet

Approach

47.2°—

Maker

Breakover

30.8°—

Maker

Departure

40.5°—

Maker

Tyre diameter

37.0 in—

Maker37x12.5R17

Speedometer

accurate—

Maker

Effective final drive

4.70:1—

Maker

Payload left

1,155 lb—

Maker

Front axle load

No data yet

Rear axle load

No data yet

Stock figures: 2026 Ford Bronco SUV Technical Specifications (2/18/26 V1.0). Solid outline = from the maker; dashed = our estimate from geometry. Overhangs are estimated (the maker doesn’t publish them), so changed angles carry a range.

Part masses are typical, not yours. This is an estimate, not a weighbridge: weigh your rig.
