Y62 Patrol · 2010–present
Nissan Patrol
Every configuration's clearance, angles, weights and towing from Nissan's own documents, then what a lift and bigger tyres do to them.
- Approach
- 28.0–40.0°
- Clearance
- 10.7–12.7 in
- Tows up to
- 7,716 lb
- Configurations, all years
- 3

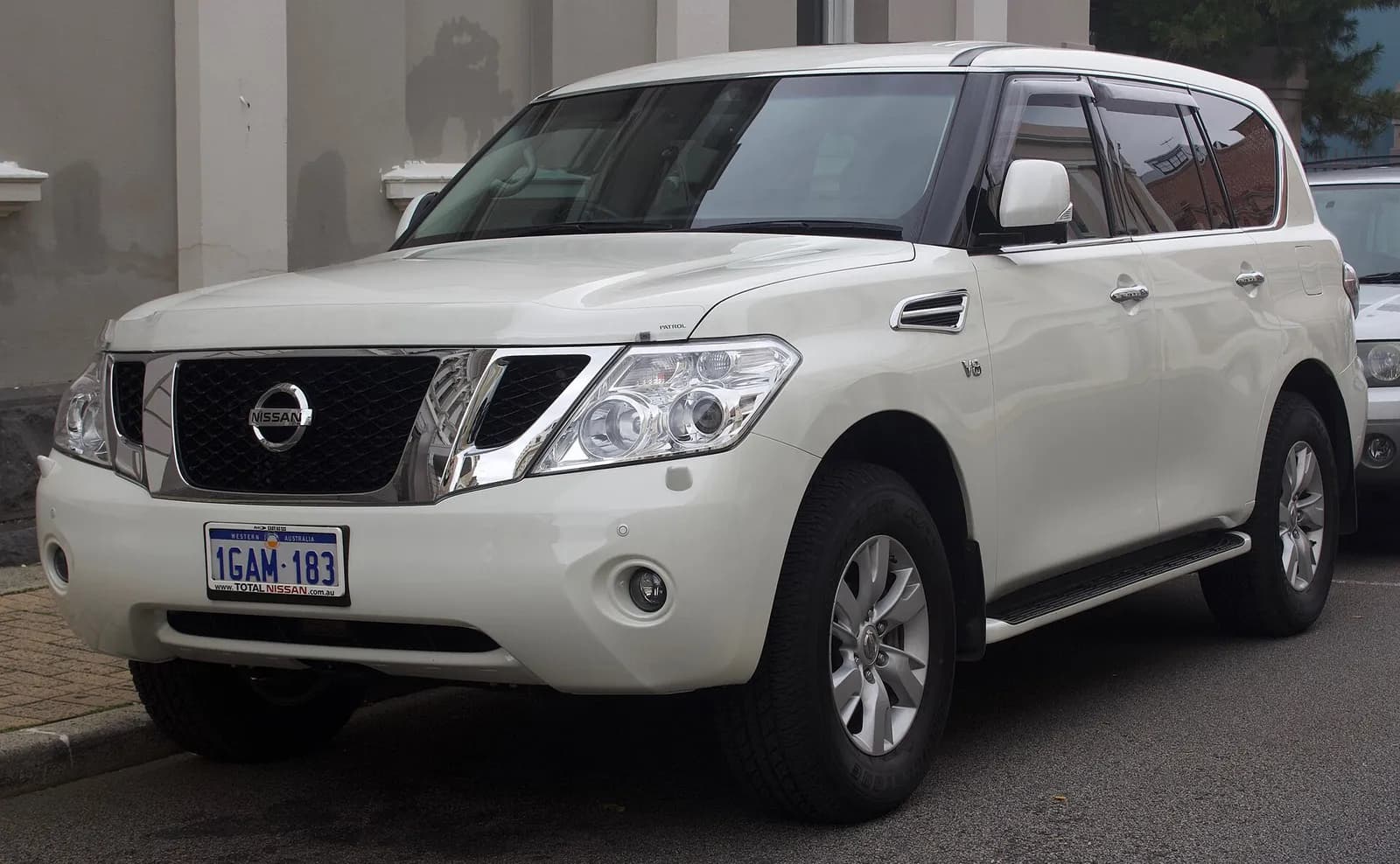

_Ti-L_wagon_(2018-09-17)_01.jpg){kind=link}
Spec plate
2026 Nissan Patrol
One configuration per trim, named under each heading. Solid figures are the maker's; "door label" means the maker only prints it on each vehicle's certification label.
| TiPatrol Ti | Ti-LPatrol Ti-L | Patrol WARRIOR by PremcarPatrol WARRIOR by Premcar | |
|---|---|---|---|
| Ground clearance | 10.7 in | 10.7 in | 12.7 in |
| Approach | 34.4° | 28.0° | 40.0° |
| Departure | 26.3° | 26.3° | 23.3° |
| Wheelbase | 121.1 in | 121.1 in | 121.1 in |
| Curb weight | 6,142 lb | 6,277 lb | 6,301 lb |
| GVWR | 7,716 lb | 7,716 lb | 7,981 lb |
| Max payload | 1,574 lb | 1,440 lb | 1,680 lb |
| Max towing | 7,716 lb | 7,716 lb | 7,716 lb |
| Front axle rating | 3,638 lb | 3,638 lb | 3,638 lb |
| Stock tyres | 265/70R18 | 265/70R18 | 295/70R18 |
| Low range | 2.679:1 | 2.679:1 | 2.679:1 |
