Third generation (RG) · 2020–present

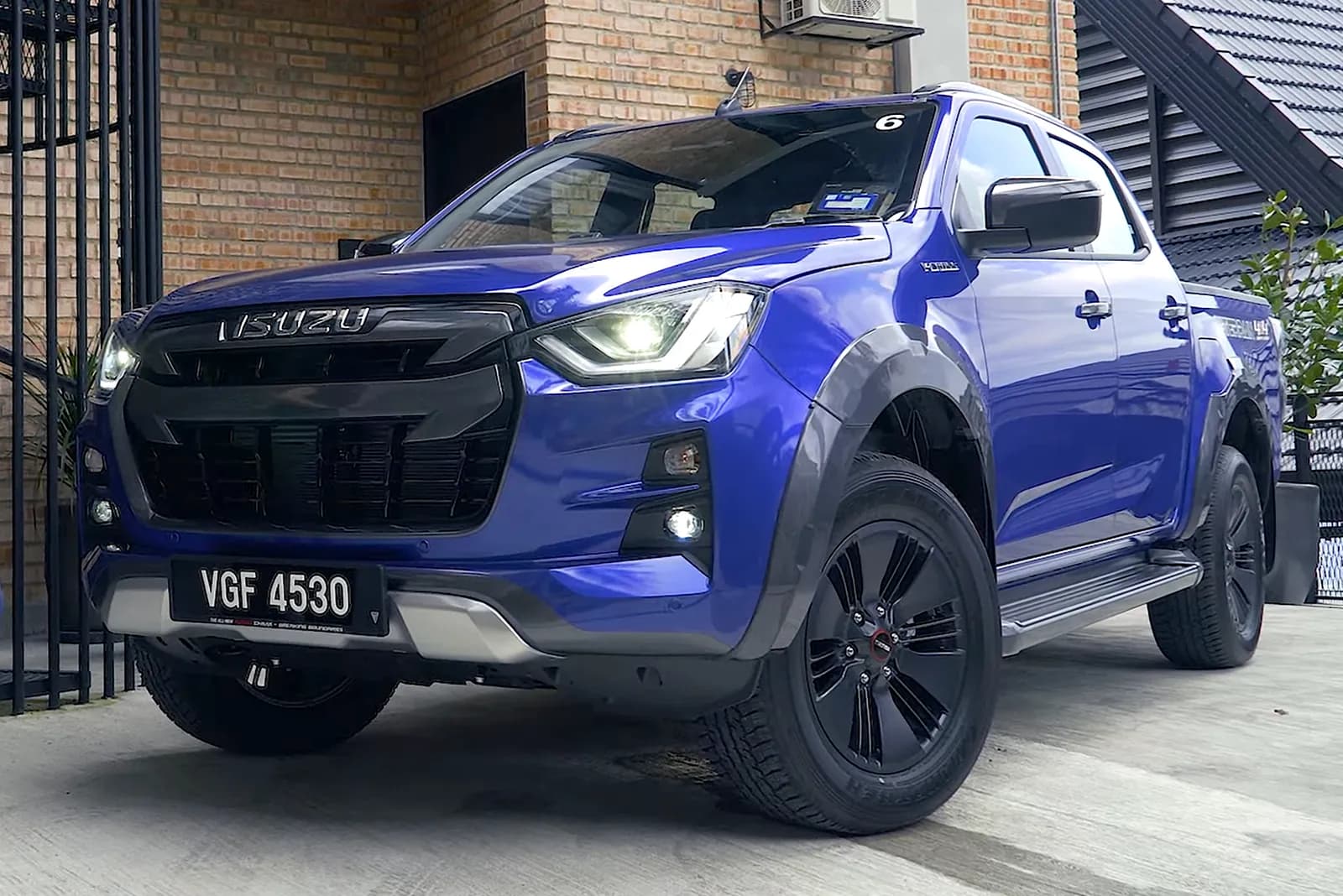

Isuzu D-Max
Every configuration's clearance, angles, weights and towing from Isuzu's own documents, then what a lift and bigger tyres do to them.
- Approach
- 26.9–30.5°
- Clearance
- 9.3–9.6 in
- Tows up to
- 7,716 lb
- Configurations, all years
- 21
_front_view.png){kind=link}
Spec plate
2025 Isuzu D-Max
One configuration per trim, named under each heading. Solid figures are the maker's; "door label" means the maker only prints it on each vehicle's certification label.
| SXSX Crew Cab Ute 4x4 2.2L | LS-ULS-U Crew Cab Ute 4x4 3.0L | X-RIDERX-RIDER Crew Cab Ute 4x4 2.2L | LS-U+LS-U+ Crew Cab Ute 4x4 3.0L | X-TERRAINX-TERRAIN Crew Cab Ute 4x4 3.0L | BLADEBLADE Crew Cab Ute 4x4 3.0L | |
|---|---|---|---|---|---|---|
| Ground clearance | 9.3 in | 9.4 in | 9.3 in | 9.4 in | 9.4 in | 9.6 in |
| Approach | 30.0° | 30.5° | 26.9° | 30.5° | 27.3° | 29.2° |
| Breakover | 23.3° | 23.8° | 23.3° | 23.8° | 23.8° | 25.2° |
| Departure | 23.9° | 19.0° | 23.9° | 19.0° | 19.0° | 19.2° |
| Wheelbase | 123.0 in | 123.0 in | 123.0 in | 123.0 in | 123.0 in | 123.0 in |
| Curb weight | 4,365 lb | 4,641 lb | 4,431 lb | 4,641 lb | 4,784 lb | 4,848 lb |
| GVWR | 6,834 lb | 6,834 lb | 6,834 lb | 6,834 lb | 6,834 lb | 6,834 lb |
| Max payload | 2,469 lb | 2,194 lb | 2,403 lb | 2,194 lb | 2,050 lb | 1,986 lb |
| Max towing | 7,716 lb | 7,716 lb | 7,716 lb | 7,716 lb | 7,716 lb | 7,716 lb |
| Front axle rating | 3,197 lb | 3,197 lb | 3,197 lb | 3,197 lb | 3,197 lb | 3,197 lb |
| Stock tyres | 255/65R17 | 265/60R18 | 255/65R17 | 265/60R18 | 265/60R18 | 275/65R17 |
| Low range | 2.482:1 | 2.482:1 | 2.482:1 | 2.482:1 | 2.482:1 | 2.482:1 |
Build it
What a lift and bigger tyres do to a D-Max
Lift
Tyres
Load
Ground clearance
9.4 in—
Maker
Clearance, rear diff
No data yet
No data yet
Approach
30.5°—
Maker
Breakover
23.8°—
Maker
Departure
19.0°—
Maker
Tyre diameter
30.5 in—
Maker265/60R18
Speedometer
accurate—
Maker
Effective final drive
3.73:1—
Maker
Payload left
2,172 lb—
Maker
Front axle load
No data yet
No data yet
Rear axle load
No data yet
No data yet
Stock figures: 25.5MY Isuzu D-MAX Specifications (incl. D-MAX BLADE; document IUA214663, 01/05/2026). Solid outline = from the maker; dashed = our estimate from geometry.
Part masses are typical, not yours. This is an estimate, not a weighbridge: weigh your rig.
